The boiler adopts an environmentally friendly combustion method – full premixed combustion, and the gas and air are precisely adjusted and premixed in advance to ensure more complete combustion. The new crossing wing-shaped heat exchange element, Ultra-speed Smoke Cooking Tube, uses a unique heat transfer technology and structural design to achieve deep condensation of flue gas and greatly improve heat transfer efficiency.
The heat exchange surface of the boiler is sufficient, and the condenser and the rear smoke box are integrated to reduce the total volume of the boiler.
The flow rate of the flue gas in each section is stable, and the utilization rate of the heat exchange surface is improved.
A multi-purpose machine
The boiler adopts a standard pipe box, adapts to single and double circuits, different temperatures, and other modes, and realizes a multi-channel water supply.
Long service life
The heat medium in the boiler is deoxidized and descaled, and there will never be scaling and corrosion. The normal service life can reach more than 20 years.
The boiler adopts advanced full premixed combustion technology to achieve super high utilization of fuel, and the operating efficiency is increased by more than 15% compared with ordinary boilers. The integrated structure design reduces the floor space by more than 30%. It is the preferred equipment for energy-saving heating in hotels, shopping malls, and schools.
Ultra-high heat transfer efficiency
The winged heat exchange element, the unique tear groove design increases the heat exchange area by 5 times, and the heat transfer efficiency is superior.
Very simple installation
Boiler installation design, in-plant commissioning, and user site only need to install in and out of water pipes, chimneys, gas pipes, and power, which you can use.
Compact structure and small size
By optimizing and improving the boiler and burner structure, the boiler body is greatly reduced to only 40% of the volume of an ordinary hot water boiler.
Ultra-low nitrogen emissions
Effective control of pollutant emissions through the use of full premixed combustion technology and condensate at the end of the boiler.
Available fuel: diesel, heavy oil, natural gas, city gas, liquefied petroleum gas, etc.
The boiler adopts a double-drum longitudinal “D” type arrangement structure; water, steam, or steam-water mixture flows in the pipe; flame burns and flue gas flows outside the pipe, forming an extremely fast steam-water flow rate and excellent water circulation system. Boiler heat absorption rate and thermal efficiency are high.
The boiler quality is good
More than 95% of automatic welding equipment is used. Each boiler is tested and quenched before leaving the factory. The qualified rate of inspection is 100%.
Meet large evaporation requirements
The furnace is placed outside the cylinder, and the volume of the furnace can be large or small to meet the requirements of combustion and large evaporation.
Efficient heat transfer
The drum is not directly heated, and the tube containing the water vapor is placed in the furnace and the flue as a heating surface to improve heat transfer efficiency.
The small impact of the disaster
The special water pipe arrangement increases the heating surface, but the amount of boiler water is not much. In the event of a disaster, the degree of damage is small.
Available fuel: diesel, heavy oil, natural gas, city gas, etc.
This series of boilers is designed with a classic shell type, full-wet back, down-flow, and three-pass design structure. The fuel is fully burned in the large-capacity combustion chamber, and the combustion heat load is low, which can greatly reduce the emission of harmful substances such as CO and NOx.
High efficiency and energy saving
Through the heat recovery device, the flue gas waste heat is reused, the exhaust gas temperature is as low as 95 ° C, the thermal efficiency can reach 97-100%, and the boiler efficiency is maximized.
The installation is simple
The boiler adopts an integrated design structure, and the user only needs to complete the construction and connection of water, smoke, and gas pipelines.
Intelligent control system
The boiler is equipped with a PLC intelligent control system, which can flexibly adjust the operating state of the boiler according to actual needs, realizing digital settings and automatic adjustment.
High product quality
More than 95% of the main welds of the boiler are automatically welded and molded at one time; the furnace body is fully tested for flaw detection, and the pass rate is over 99%.
Available fuel: heavy oil, diesel, natural gas, city gas, etc.
The series of boilers adopts an excellent design concept. Through the condensing device, the heat of the flue gas is used in a cascade, and the residual heat in the flue gas is fully absorbed so that the boiler efficiency is greatly improved.
High thermal efficiency
The flue gas is heat exchanged through the spiral finned tube in the condenser and economizer, so the heat transfer effect is stronger, and the fuel consumption is reduced by at least 4%.
Long service life
The boiler body is made of a more corrosion-resistant material such as silicon-aluminum alloy. The combustion chamber is completely immersed in water and is not affected by high-temperature flue gas. So, the operating environment of the boiler is guaranteed.
The insulation measures are perfect
Ultra-fine glass wool is used as an insulation material between the smoke box and the tube sheet, and the heat loss is extremely small, reducing unnecessary heat waste.
High safety factor
Various protection systems such as excessive water level, unstable pressure, abnormal power supply, scale detection, and burner system ensure the safety of boiler operation.
The closed condensate recovery system is combined with the three-pass structure, economizer, and air preheater to fully utilize the heat of the gas or oil, and the heat of the high-temperature condensate is recovered from the source, which can save operating costs and improve boiler operating efficiency.
Low operating costs
The closed condensate recovery system can recover more than 70% of condensed water, saving the overall operating cost of the boiler for the enterprise.
The combustion is deeply matched to the heat exchanger, breaking the limits of the burner, and the boiler becomes a complete thermal energy system, further improving efficiency.
Using the crossing wine-shape heat transfer technology, the heat transfer area is increased by 5 times, saving 2/3 of the floor space compared with the ordinary boiler.
Through the parallel combination, multi-machine joint control can be completed, and up to 128 boilers can be controlled at the same time.
Gas Steam Boiler Guide: Gas Consumption Of 4 Ton Gas Steam Boiler
Gas consumption of a 4-ton gas steam boiler, whose fuel consumption is one of the concerns of many customers. Then, how much is the fuel consumption of an ordinary natural gas steam boiler? How to calculate the gas consumption in a steam boiler? What is the gas consumption of a 4-ton gas steam boiler? And is directly related to the input cost. I will tell you about it in this paper.
Determine the boiler gas consumption
The gas consumption of gas-fired steam boilers is closely related to the stoker’s stoker experience. Not only the gas consumption but also the safe operation of the boiler is very important. Therefore, the relevant state departments stipulate that the stoker must have a stoker certificate. Which is a manifestation of being responsible to the user unit, the stoker, and the society.
In simple terms, the determining factor of the gas consumption of the boiler is the heating area of the boiler. The calorific value of the fuel, the purity of the fuel, the heating area of the boiler convection, the radiation heating area of the boiler, and the stoker skill of the stoker.
The fuel consumption of natural gas steam boilers is one of the concerns of many customers. Then, how much is the fuel consumption of an ordinary natural gas steam boiler? We can calculate gas consumption in accordance with the following parameters: The heating value of natural gas is 35.53MJ / m³, which is calculated by the standard calorific value 0.845m³ / m³.

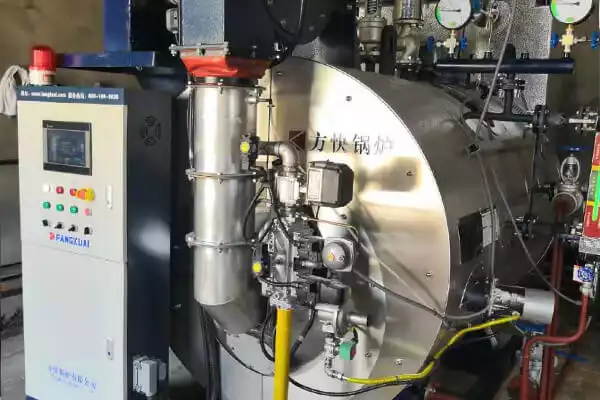

The best-rated 4-ton steam boiler manufactured by Fangkuai is a high-efficiency industrial steam boiler adopting double buttons quick-loading structure that can reduce overall dimensions and weight as well as simplify installation work. Compared with the traditional single-button quick-loading structure, its overall dimensions decreased by 10% and its weight decreased by 15%. The specially designed combustion chamber has double buttons for quick loading, which improves the thermal efficiency of the furnace and increases the power output.
Determine the output of the boiler.
how to calculate boiler horsepower
The output of a ton of boilers is 600,000 kcal, and so on, the output of a 4-ton gas boiler is 2.4 million kcal.
The output of a boiler is calculated by multiplying its thermal efficiency by its heat input rate, then adding this value to its latent heat content (the amount of energy required to vaporize water at 100°C). Depending on which type of fuel you’re using, this value will be different. For instance, if your plant uses natural gas as its primary fuel source, then your thermal efficiency will be between 35% and 40%. To determine your plant’s average thermal efficiency, take an average over several months and use it in future calculations.
The calorific value of general natural gas is 8400 kcal per cubic meter, and the calorific value of diesel is 10240 kcal per kilogram.
From the observed rise in temperature of the water and the container, the calorific value of the fuel can be determined by equating the heat given out by the fuel to the heat taken by the water and the container. In order to know the heat taken by the container, the water equivalent of the container should be known.
The calorific value of a fuel is the amount of heat energy that it has per unit weight. This is important to know because you need to know how much heat your boiler can generate from a certain quantity of fuel, and you also need to know whether or not your boiler will require extra fuel for generating steam.
For example, oil has about 50% higher calorific value than coal does Therefore, if you were using oil instead of coal as your boiler fuel and using exactly the same amount of each type (that is, 100 kg), then half as much oil would be needed compared with coal.
The best-rated 4-ton steam boiler manufactured by Fangkuai is a high-efficiency industrial steam boiler adopting double buttons quick-loading structure that can reduce overall dimensions and weight as well as simplify installation work. The 4-ton gas-fired steam boiler consumes 4-ton gas per hour, so you need to prepare the same amount of natural gas for operation.
If the boiler is equipped with advanced technology, it will be easy to use and maintain it.
Looking for boilers with sophisticated manufacturing, and great quality?
In general, the fuel consumption of a 4-ton gas steam boiler is about 101 cubic meters. When it comes to the application industry of 4-ton steam boilers, many customers pay more attention to their own operating costs. According to the above introduction. Users can calculate the fuel consumption of the boiler according to the specific parameters of the gas-fired steam boiler. So as to understand the operating costof the boiler. If you need to know more about the gas consumption of a 4-ton gas steam boiler, please contact us in time: +0086 186-2391-5479.
